Square Swivel Block

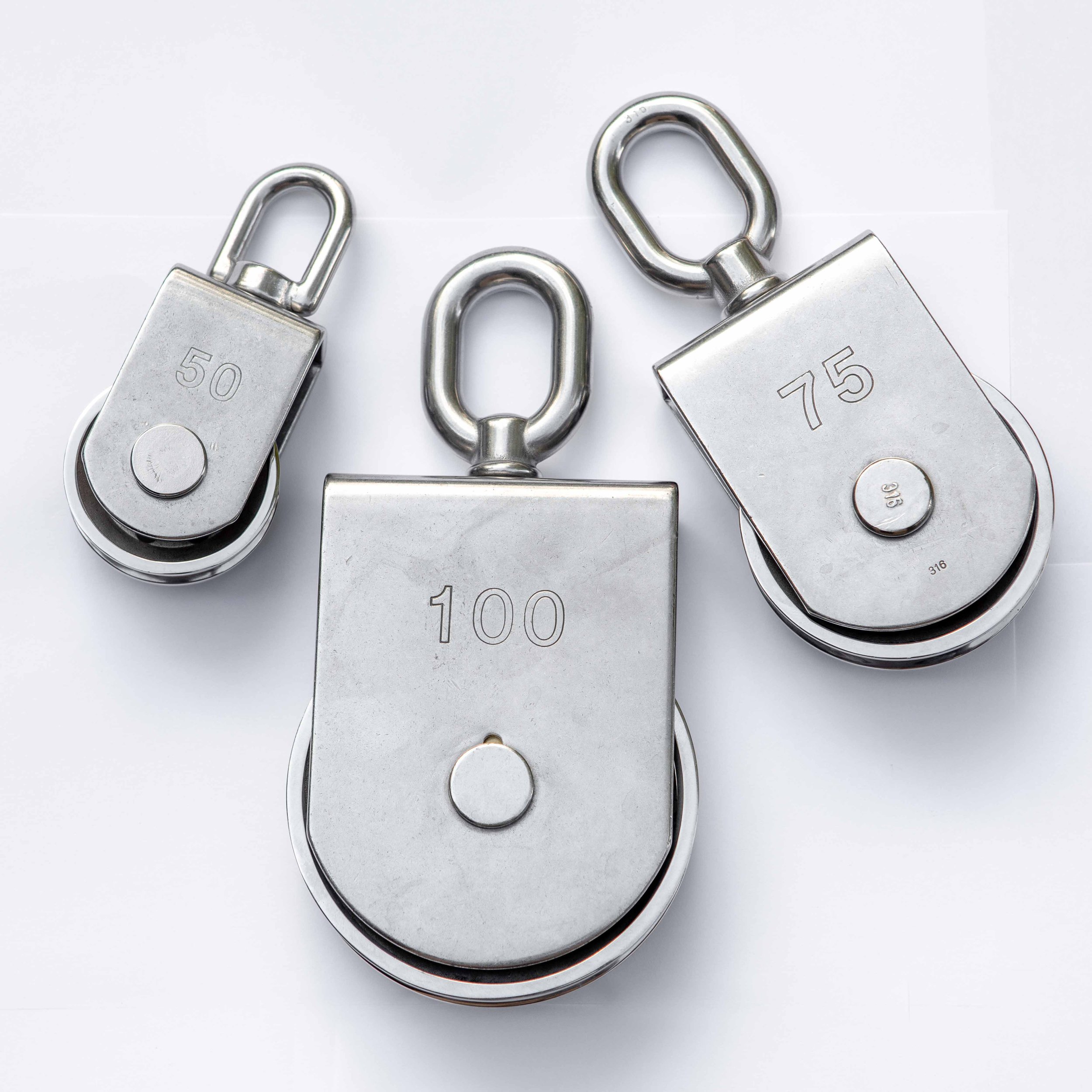

These blocks are ideal for rope rigging application. We have three sizes of swivel block available. It is advisable to fit your block as close to your rope size as possible.

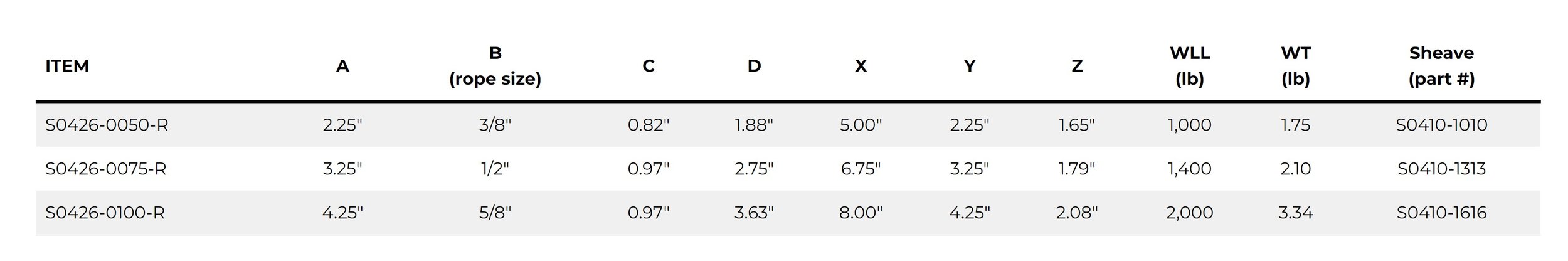

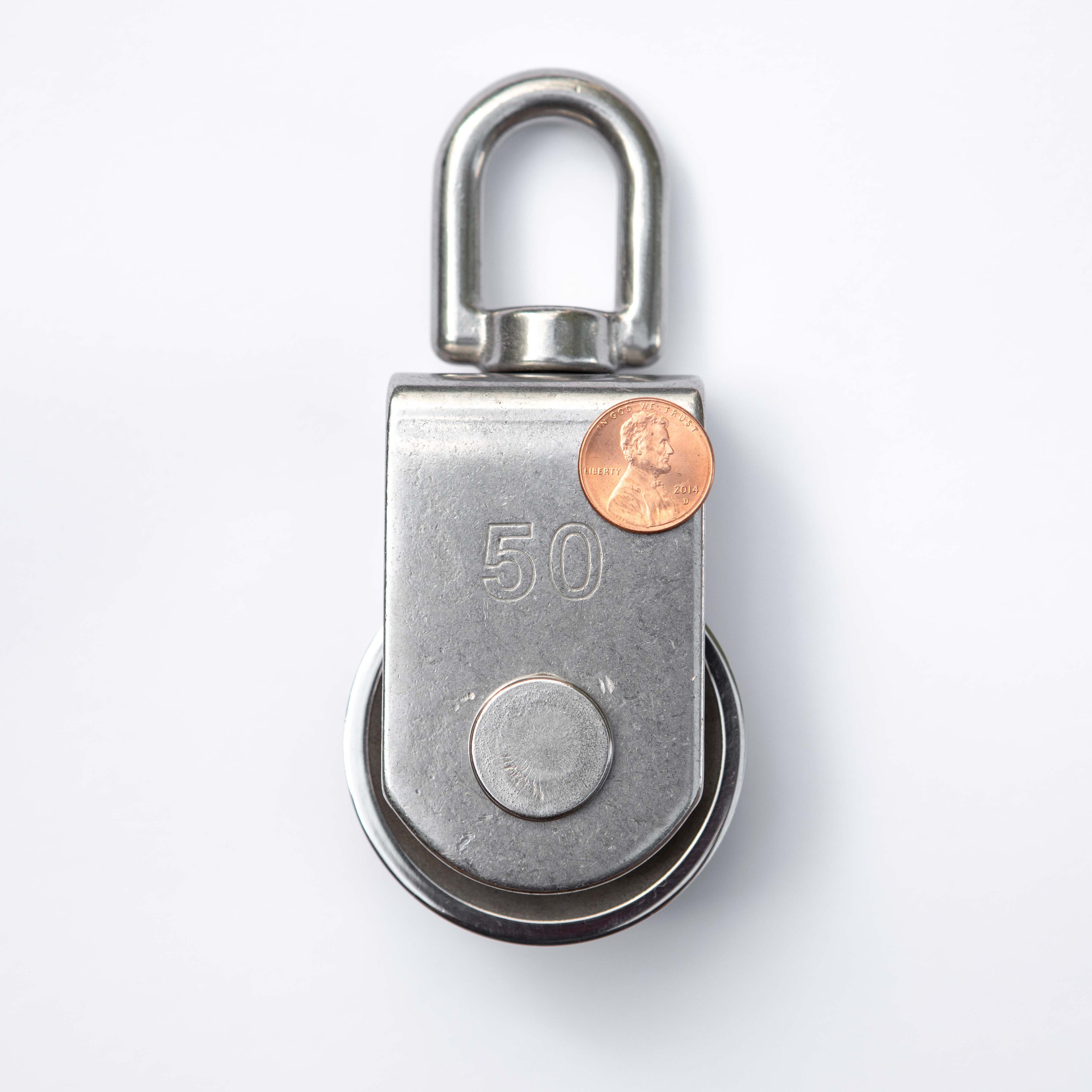

"50" block can accommodate rope diameters of 3/8" and less. Sheave diameter about 2.25"

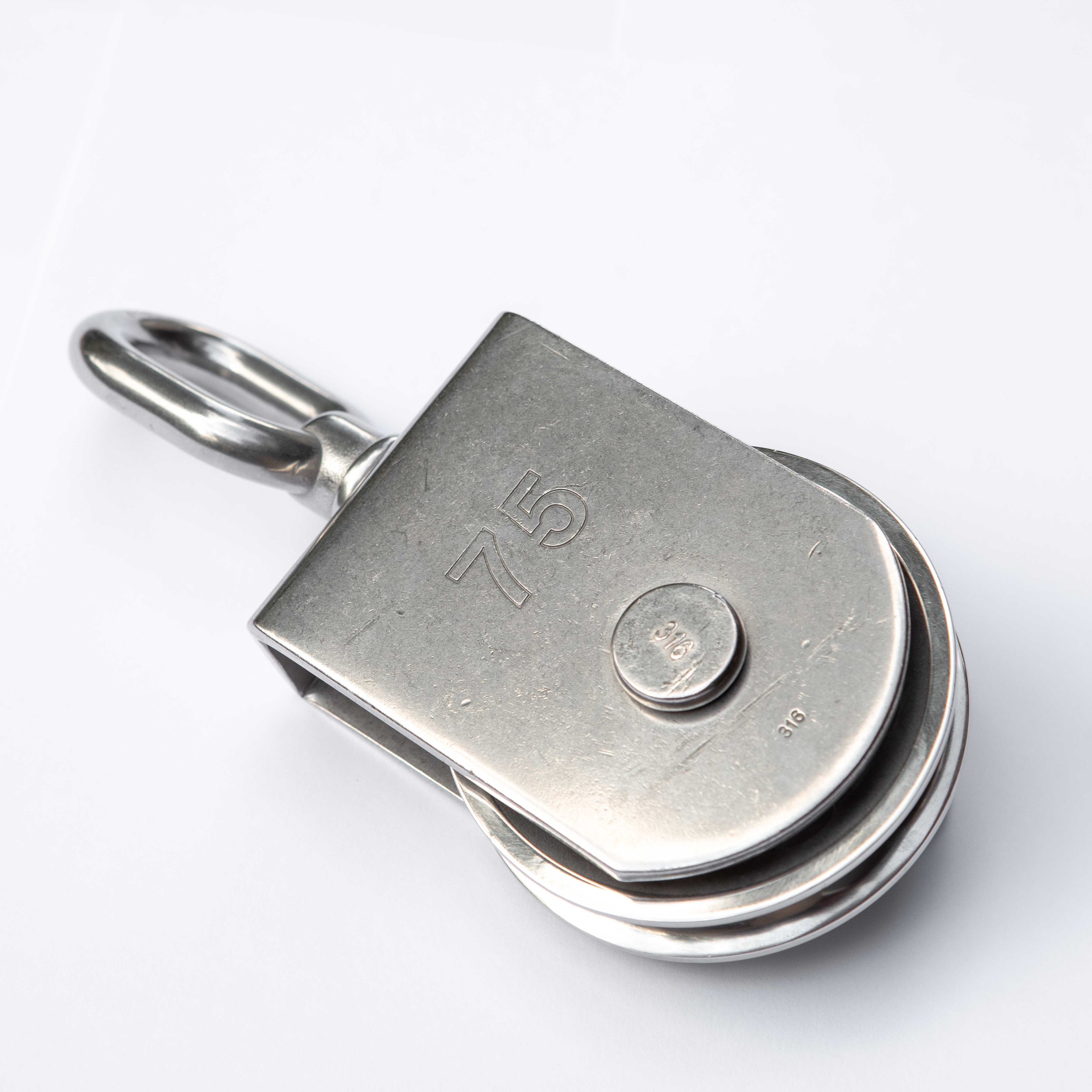

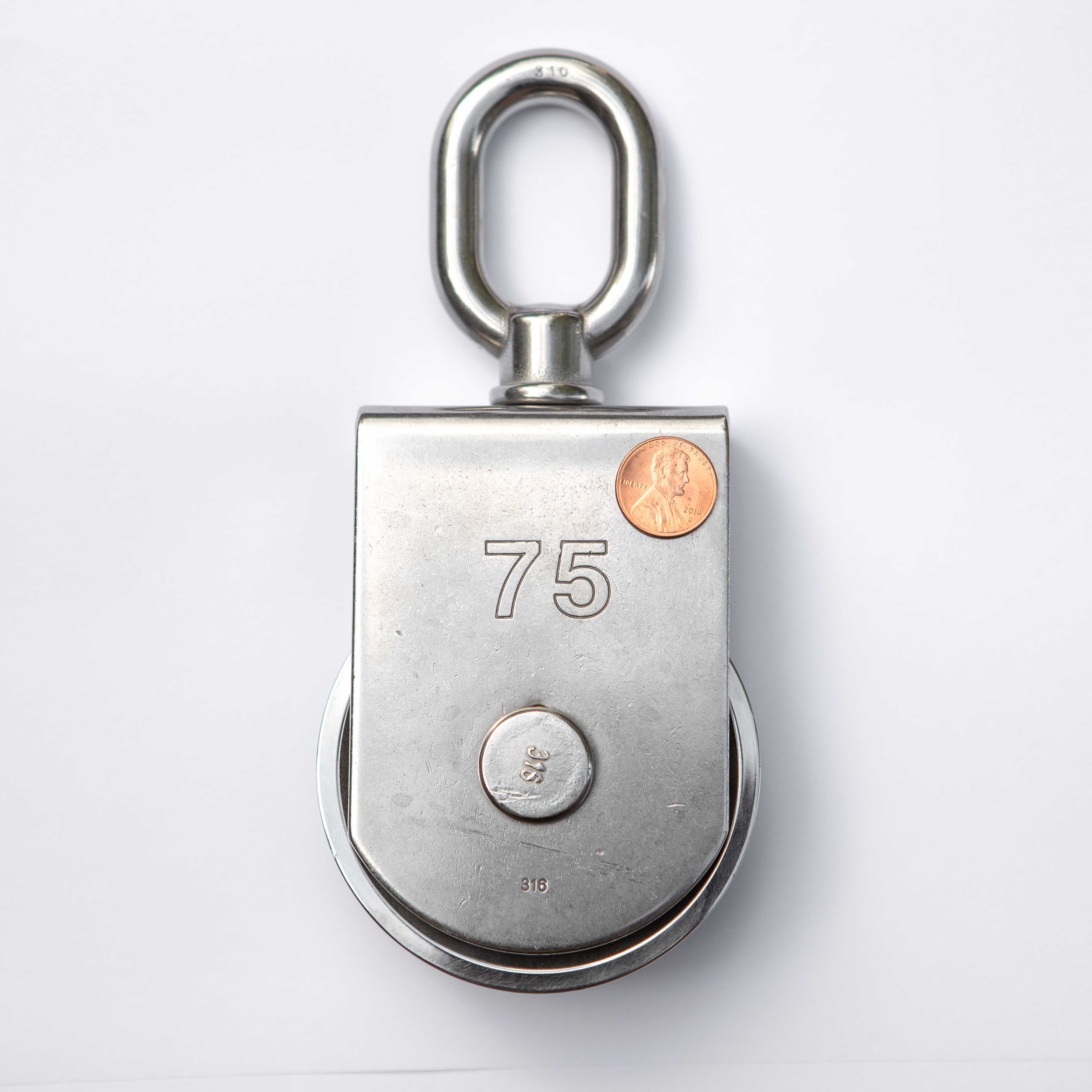

"75" block can accommodate rope diameters of 1/2" and less. Sheave diameter about 3.25"

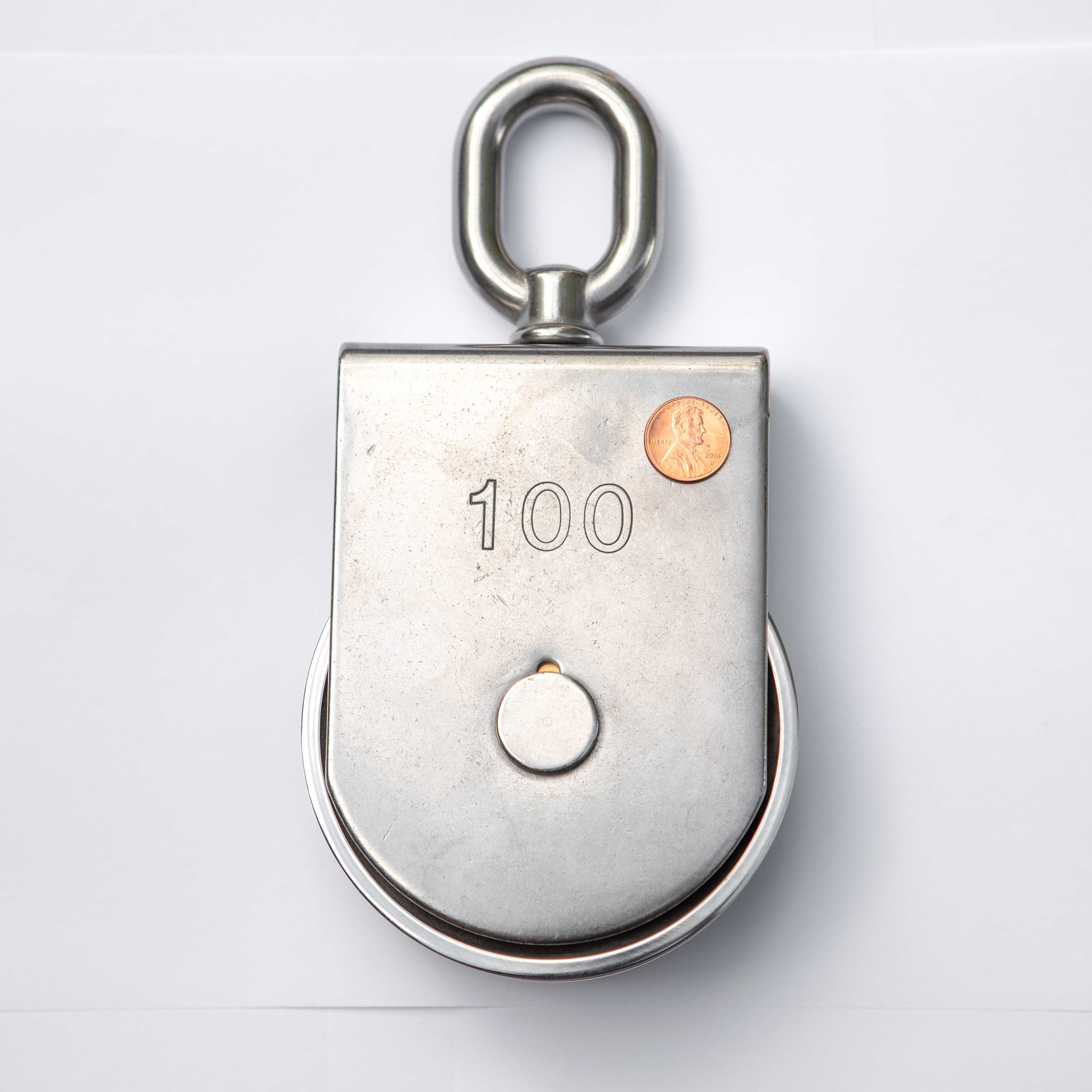

"100" block can accommodate rope diameters of 5/8" and less. Sheave diameter about 4.25"
The body of the block is made from grade 304 stainless steel and the removable sheave is made from grade 316 stainless steel for maximum corrosion resistance and durability.
(These blocks not meant for wire rope.)
